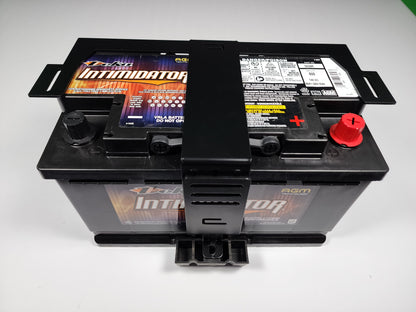

The Bridge – Universal Group 94 Wedge-Mount Battery Deck Integration Bracket

For Existing Group 94 Battery Deck Owners

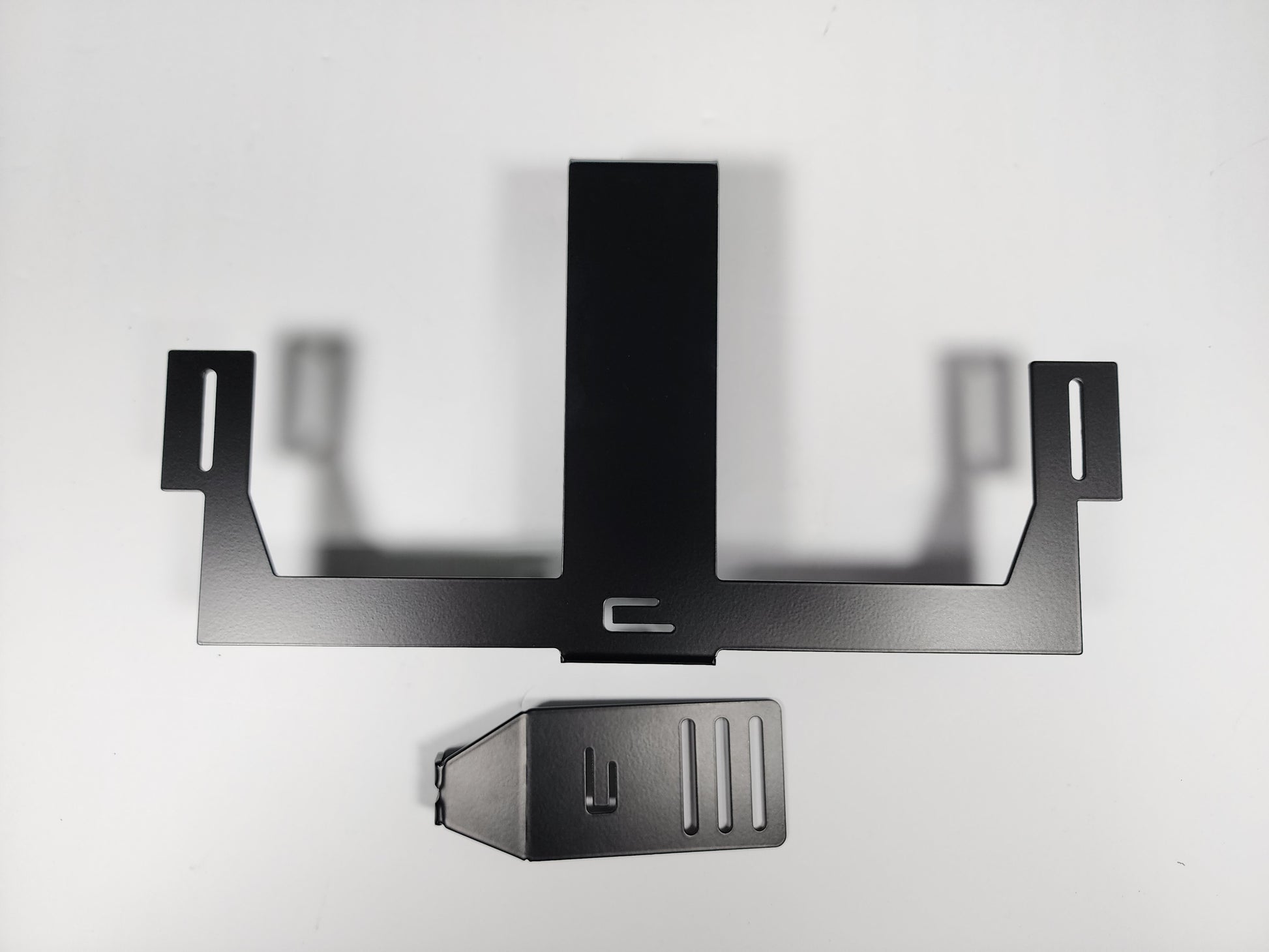

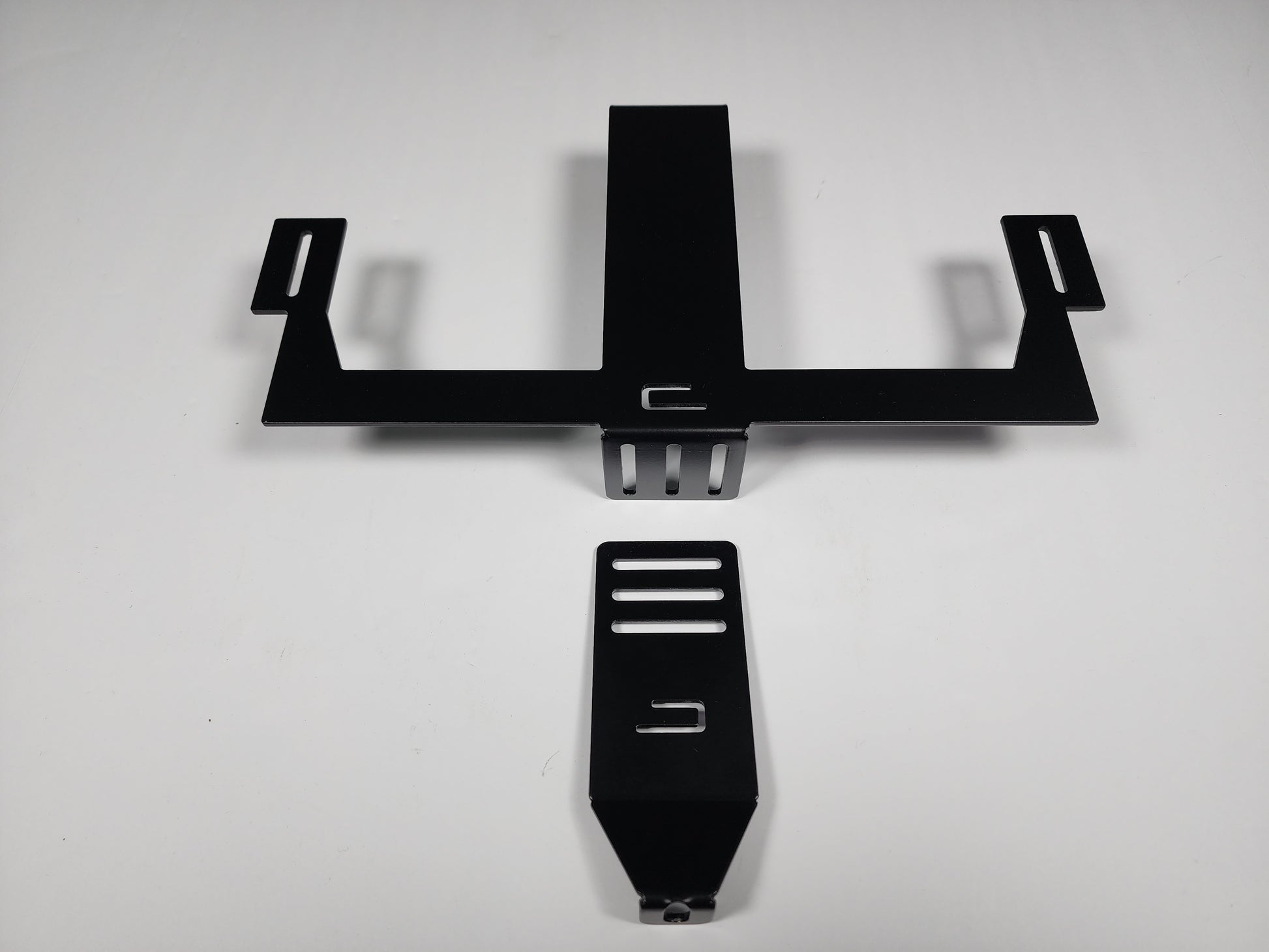

The Bridge is a universal laser-cut 12ga powder-coated steel mounting bracket designed to integrate your existing Group 94 Battery Deck with battery trays that use a lower wedge-style hold-down bolt.

If you already own a Group 94 Battery Deck and want a cleaner, more secure mounting solution for universal or custom battery trays—The Bridge is the missing piece.

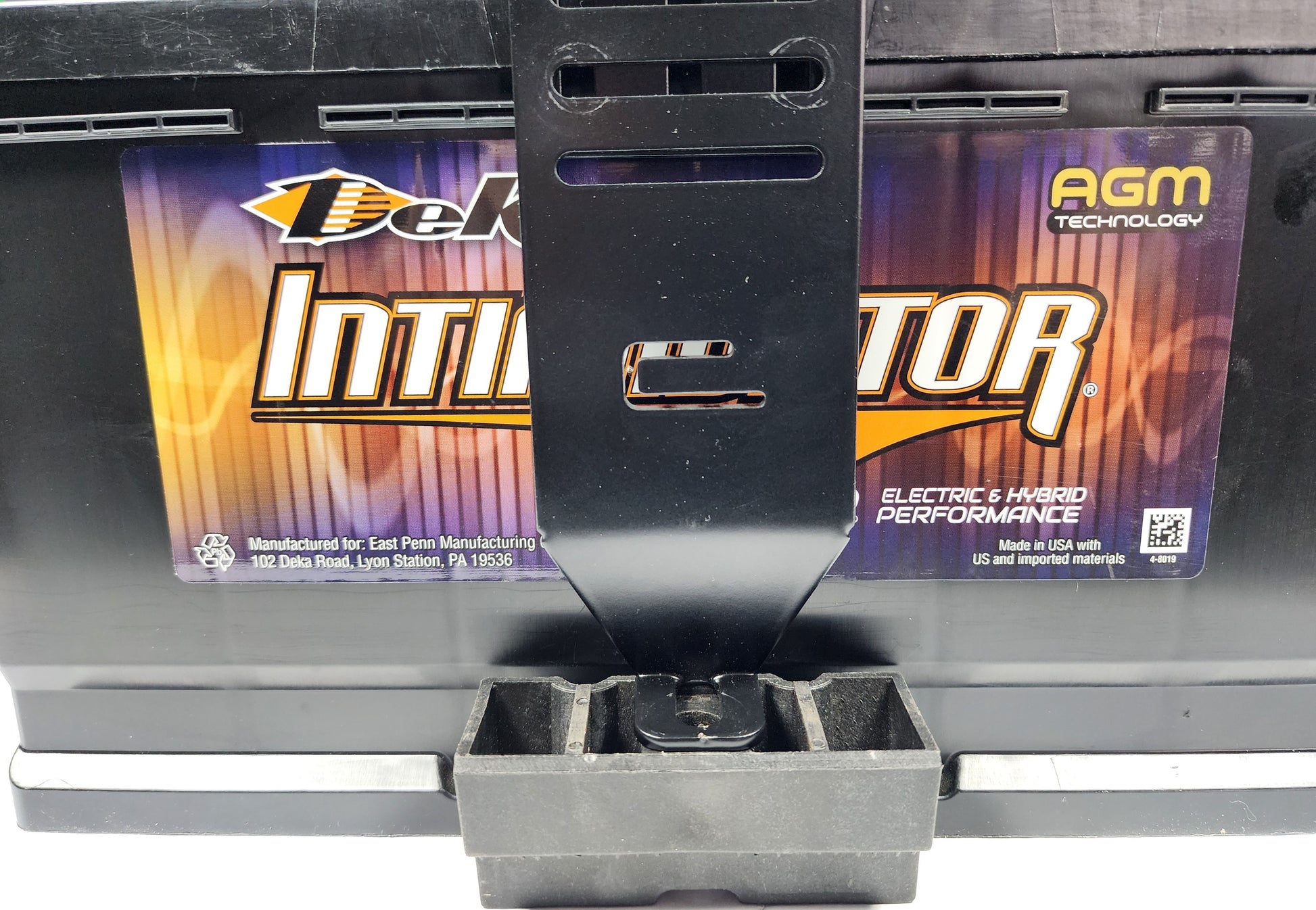

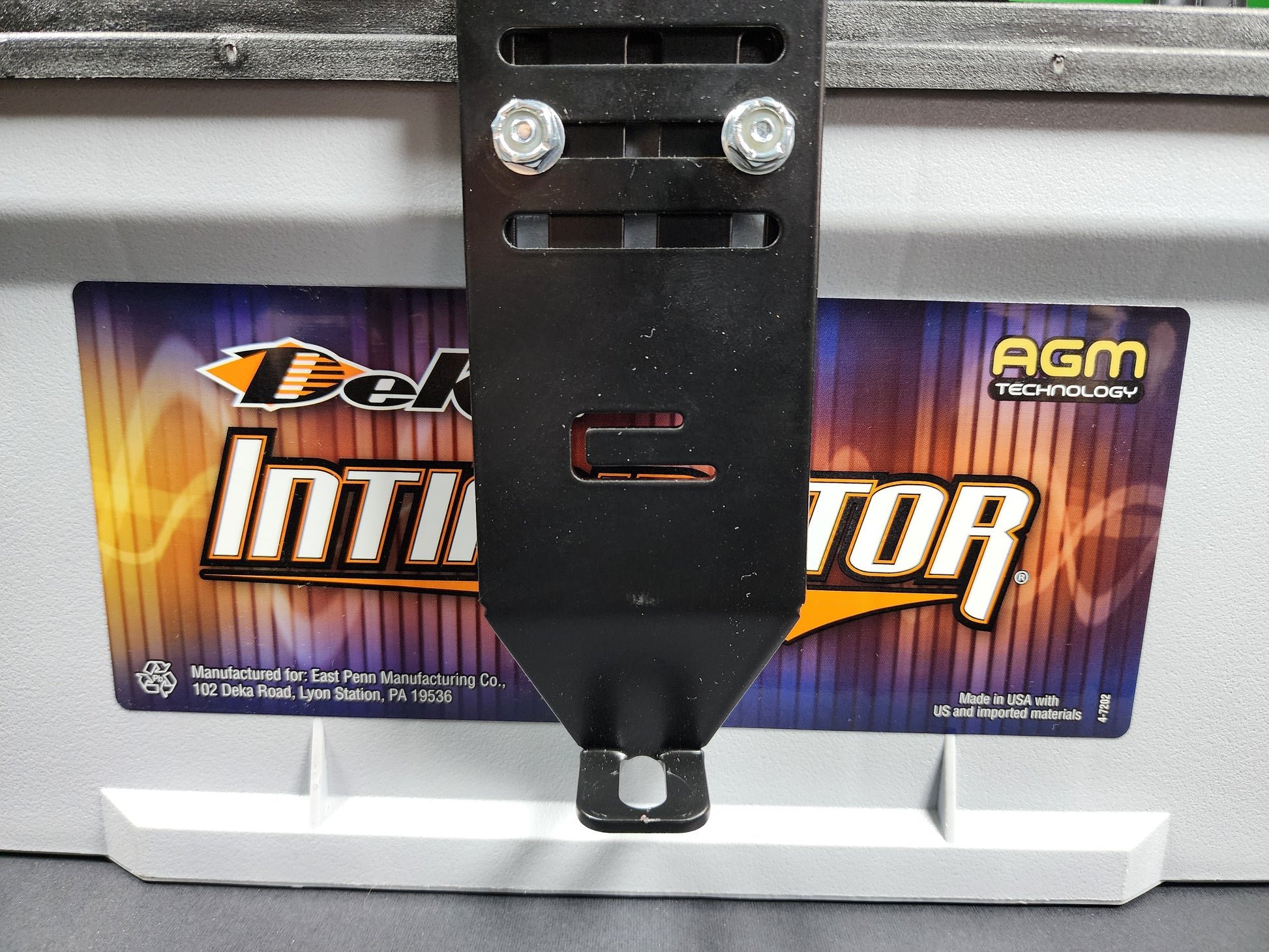

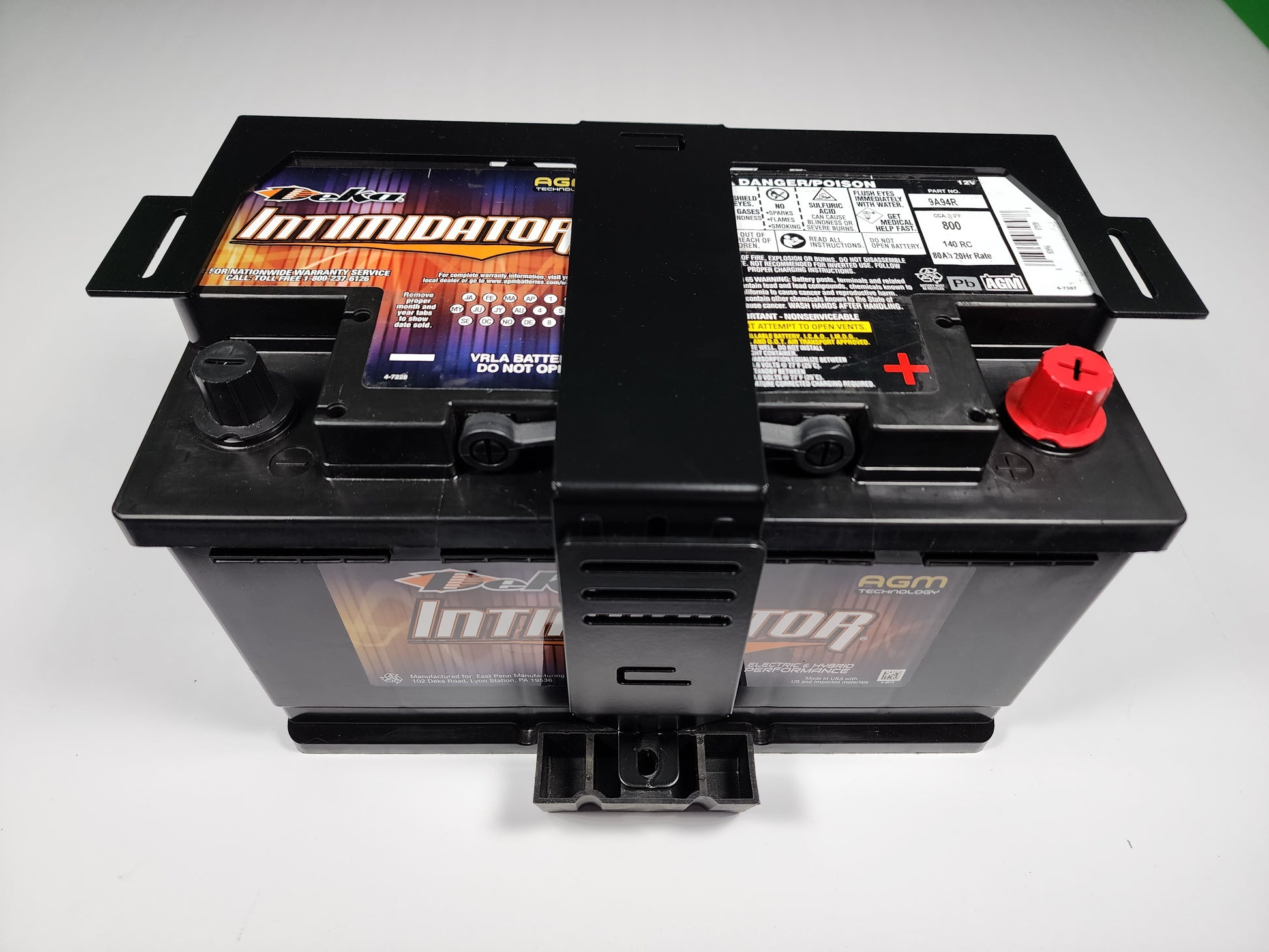

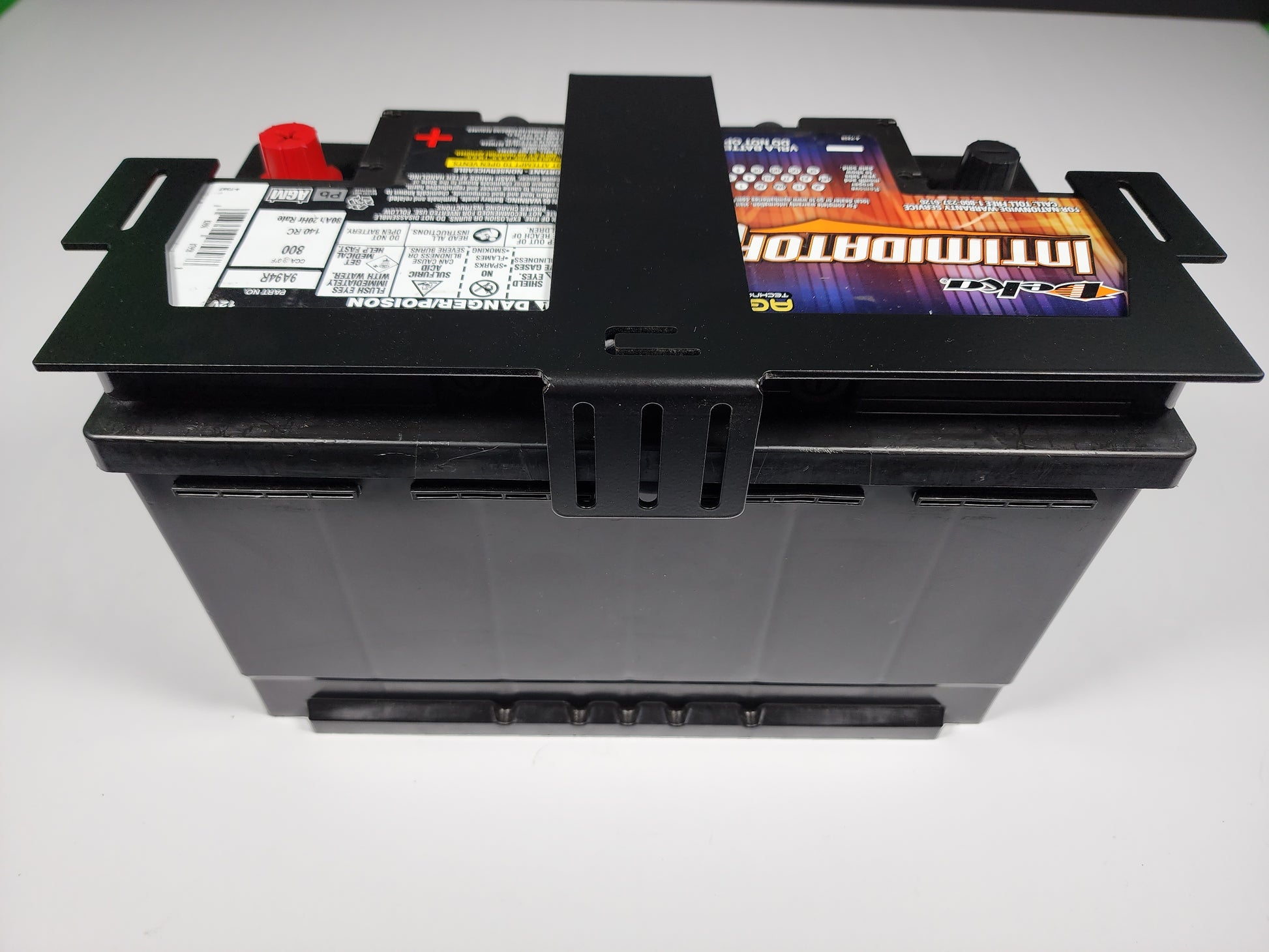

The Bridge installs using the battery tray’s existing wedge bolt location and provides a dedicated mounting interface for the Battery Deck above the battery. This creates a rigid, unified mounting structure that anchors the Battery Deck in place without drilling, cutting, or modifying your battery tray.

Unlike vehicle-specific versions, this wedge-mount Bridge does not replace the battery hold-down or clamp the battery. Instead, it uses the wedge bolt location to support and stabilize the Battery Deck assembly above the battery.

What The Bridge Does

• Integrates directly with your existing Group 94 Battery Deck

• Anchors the Battery Deck using the battery tray wedge bolt location

• Provides a stable mounting interface for the Battery Deck

• Allows height adjustment for proper deck clearance

• Creates a cleaner, more professional electrical installation

• Works with Group 94 wedge-mount battery trays

Who This Product Is NOT For

❌ You do not own a Group 94 Battery Deck
❌ Your battery tray does not use a wedge-style hold-down bolt
❌ You are looking for a battery hold-down bracket

👉 If you do not already have a Battery Deck, you need the complete Battery Deck Ecosystem instead.

Installation

• Installs using the existing wedge hold-down bolt location

• No drilling, cutting, or permanent modification required

• Height-adjustable mounting slots for deck positioning

• Installs in minutes with basic hand tools

• Important Fitment Note

  ⚠️ The Universal Bridge does not clamp or secure the battery.
  It mounts to the battery tray wedge bolt location to support the Battery Deck only.

  • IF YOUR WEDGE MOUNT BATTERY HOLD DOWN BOLT HAS A RETAINER WASHER HOLDING THE BOLT TO THE WEDGE THIS MUST BE REMOVED

  Note: You can Verify your battery group size before placing your order.
  If you have questions about fitment, feel free to message us.

KIT INCLUDES:

1) 1× Universal Group 94 Wedge-Mount Bridge
2) 4× 8-32 × 3/4" carriage bolts (Bridge to Battery Deck)
3) 4× #8 washers (Bridge to Battery Deck)
4) 4× 8-32 lock nuts (Bridge to Battery Deck)

5) 2x 10-24 carriage bolts/washers/nuts (bridge drop down bracket)

6) 4 × spacers (Battery Deck to Bridge – optional)
