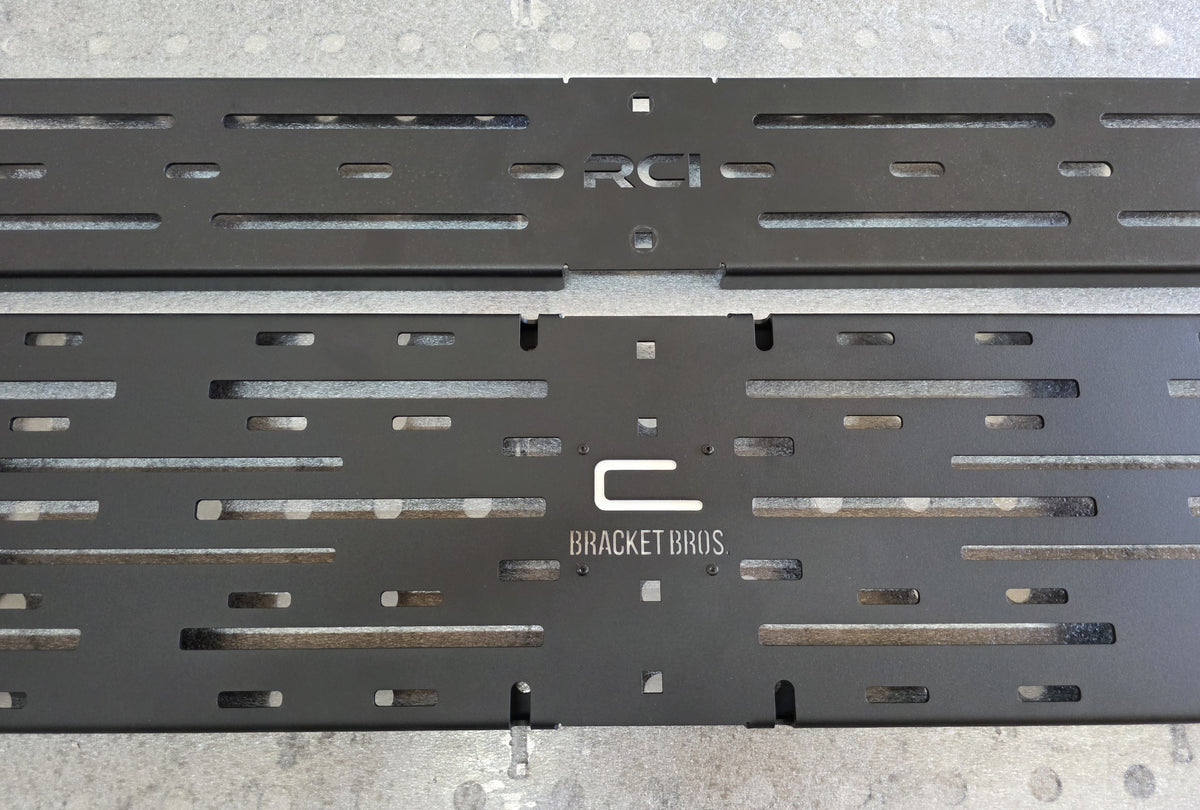

Universal Overland Rack Grid System 44.5" & 56.5"

Expand Your Overland Rack's Storage & Mounting Capabilities

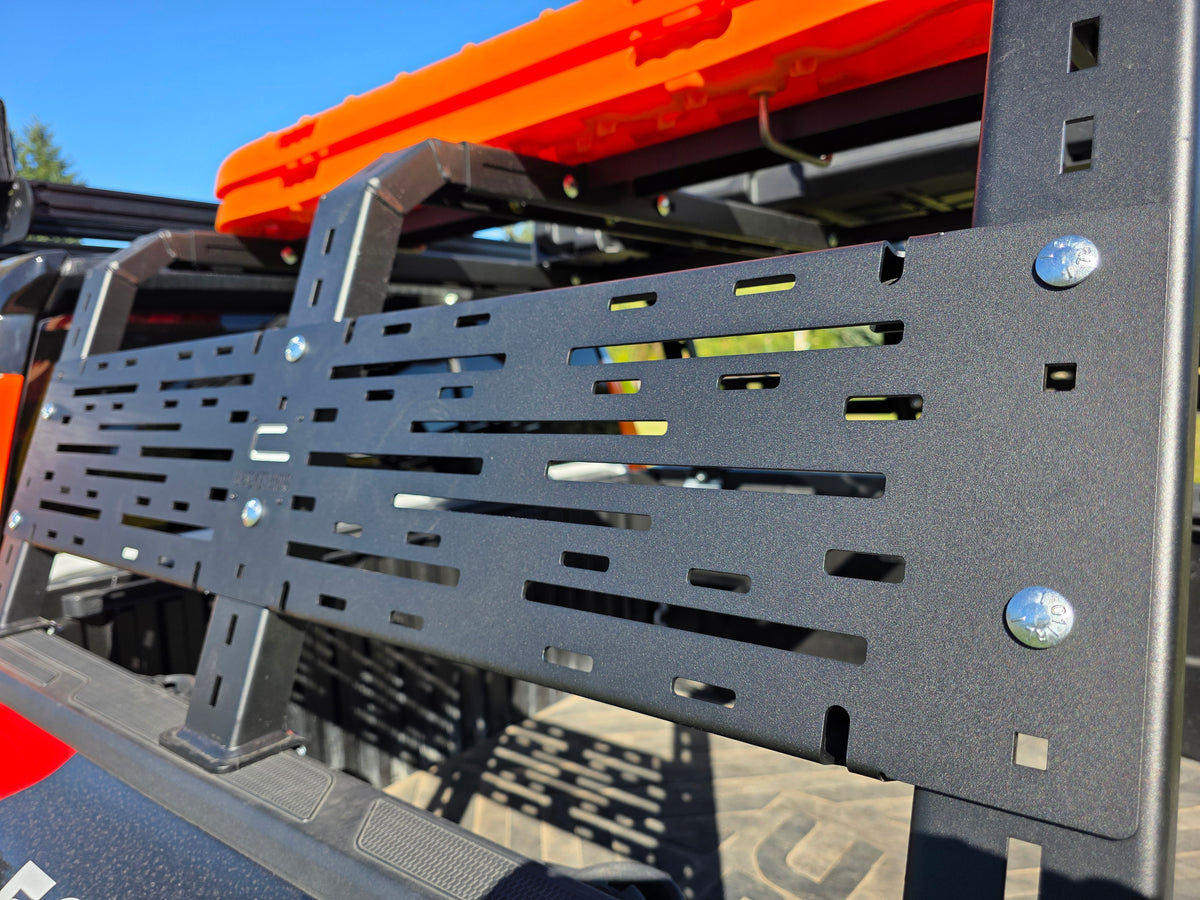

Take your overland setup to the next level with the Bracket Bros Overland Rack Grid System, a universal accessory mounting platform designed to transform unused rack space into a functional, organized storage solution.

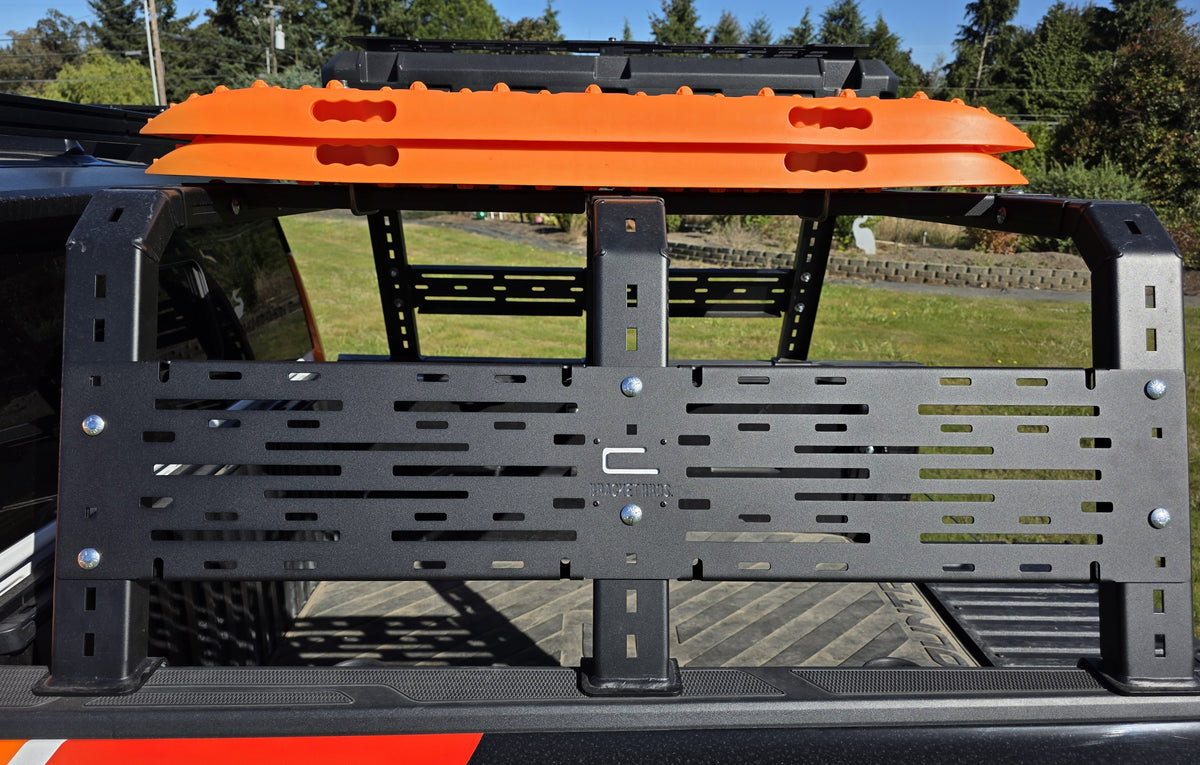

Designed specifically for overland and bed rack applications, our Grid System provides a strong, versatile mounting platform for securing RotopaX fuel and water containers, traction boards, recovery equipment, tools, and other off-road accessories.

Featuring our proprietary Grid System mounting pattern, these panels incorporate both 5/16" and 3/8" mounting slots, allowing for flexible accessory placement and compatibility with a wide variety of mounting hardware and configurations.

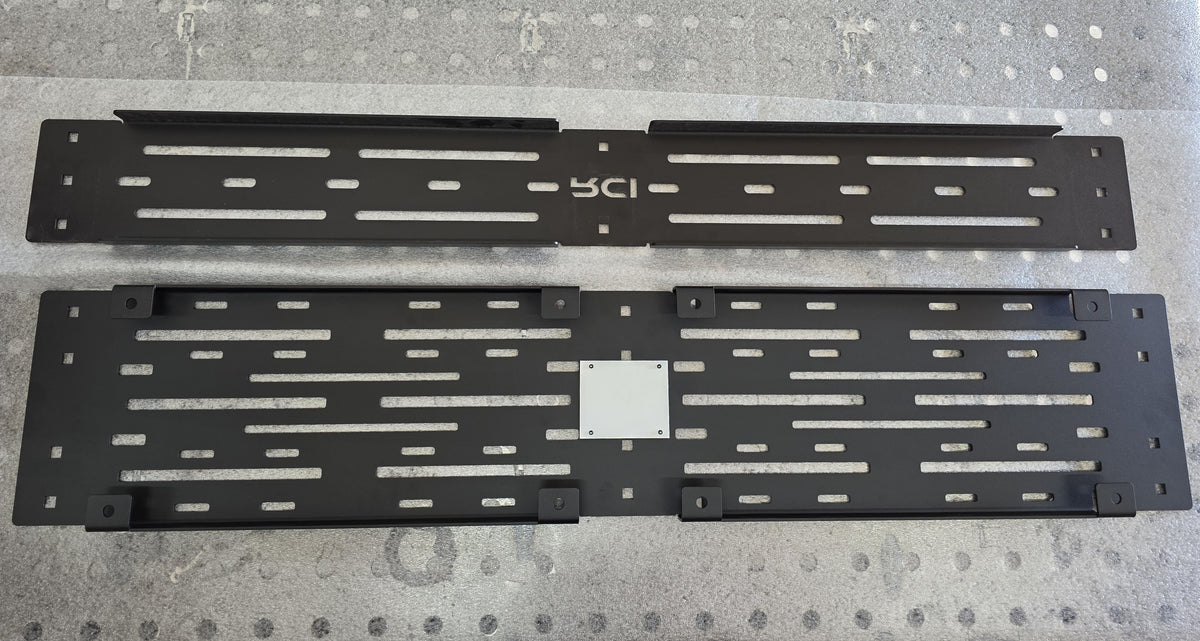

Unlike traditional accessory mounting panels, our design features additional universal mounting points on the rear mounting brackets, providing an alternative mounting method when carriage bolt slots are not preferred or compatible with your rack.

These universal mounting points also allow for future integration with our upcoming Interior Rack Grid Panel, which will attach directly to the back of the Overland Rack Grid System, creating additional accessory mounting space on the inside-facing portion of your rack.

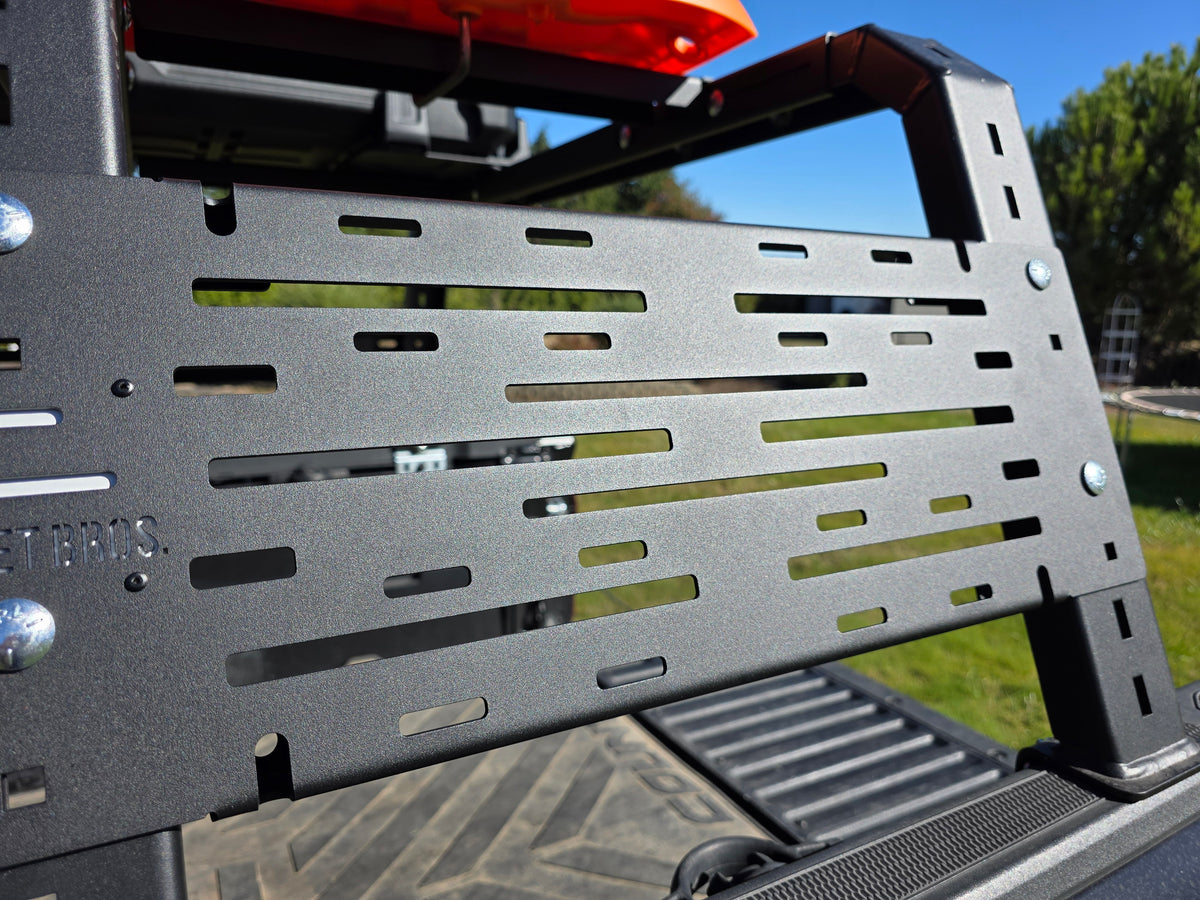

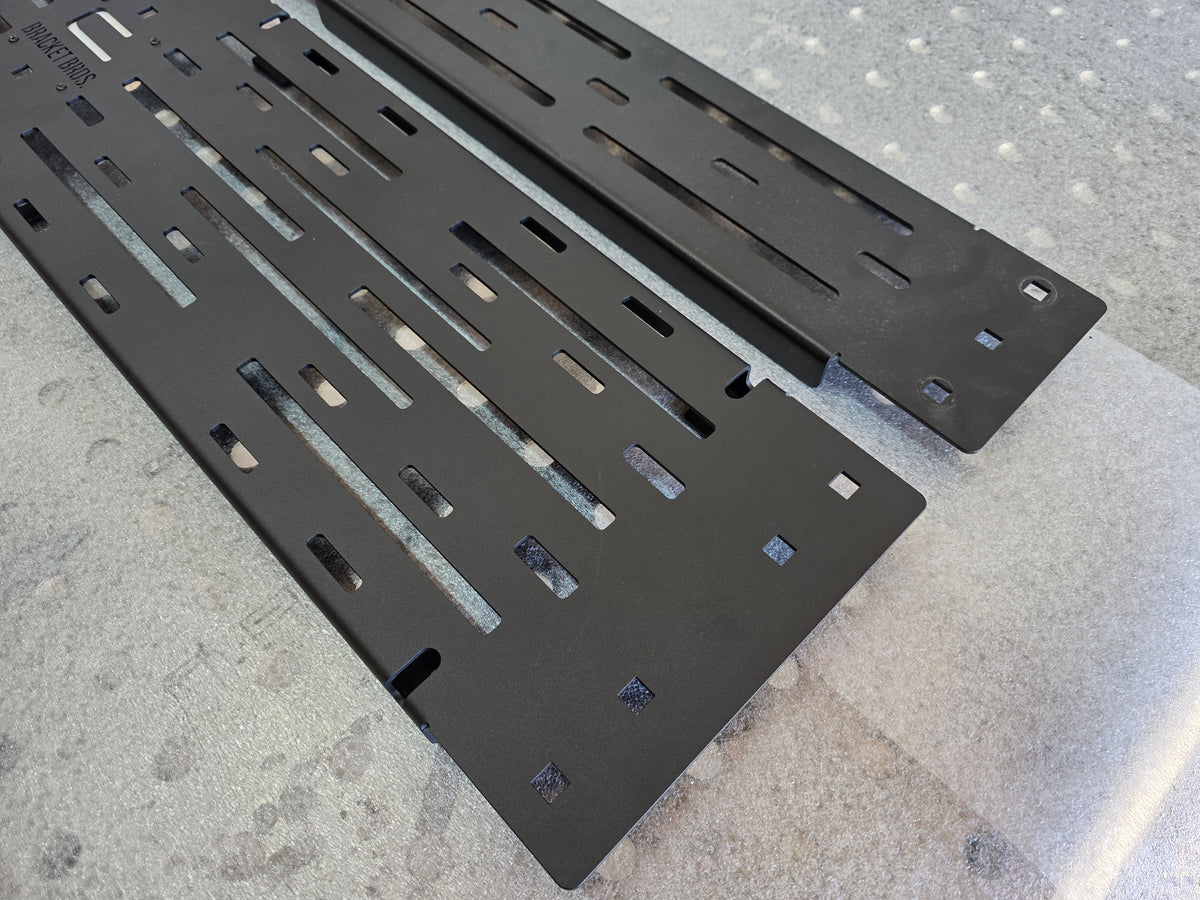

Constructed from laser-cut 12ga steel and finished in a durable black powder coat, the Overland Rack Grid System is engineered to withstand demanding off-road environments while maintaining a clean, professional appearance.

Whether you're building an overland rig, weekend adventure truck, or fully equipped off-road vehicle, the Bracket Bros Overland Rack Grid System provides the flexibility to organize your equipment exactly where you need it.

Key Features

• Universal overland rack design: Designed for compatibility with a variety of aftermarket bed racks and overland rack systems

• Two available sizes: 44.5" and 56.5" overall lengths

• Proprietary Grid System pattern: Provides flexible accessory mounting configurations

• Dual slot sizes: Features 5/16" and 3/8" slots for multiple hardware options

• Multiple mounting methods: Compatible with carriage bolt mounting or alternative universal mounting points

• Rear universal mounting points: Additional mounting locations incorporated into the rear mounting brackets

• Expandable design: Designed for future integration with an Interior Rack Grid Panel mounted directly behind the main panel

• Versatile accessory compatibility: Ideal for RotopaX, traction boards, recovery gear, tools, and other overland accessories

• Heavy-duty construction: Precision laser-cut 12ga steel

• Durable finish: Black powder coating for corrosion resistance

• Clean, professional appearance: Organizes equipment while maximizing available rack space

• Made in the USA

Available Sizes

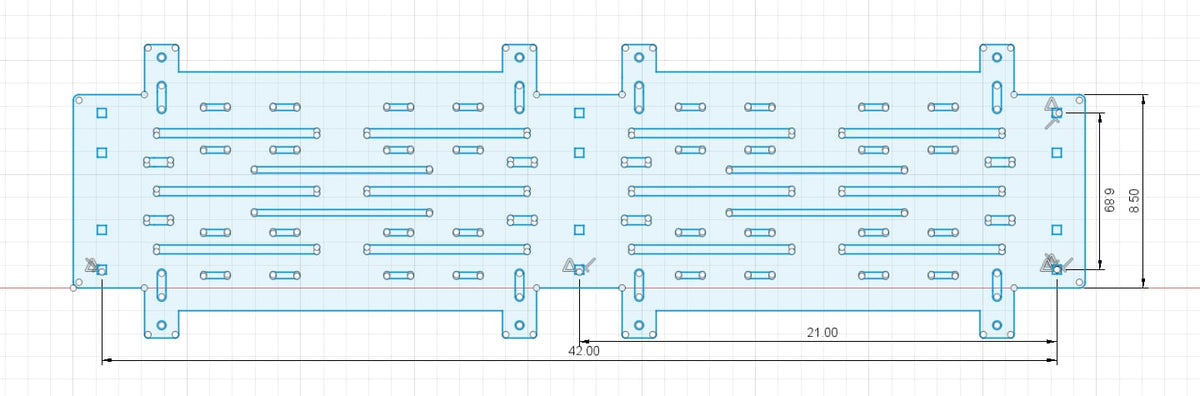

44.5" Overland Rack Grid System

• Overall length: 44.5"

• Main mounting span shown in drawing: 42"

• Overall panel height: 8.5"

• Mounting pattern: 5/16" and 3/8" slots

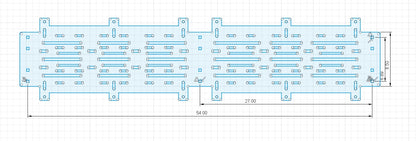

56.5" Overland Rack Grid System

• Overall length: 56.5"

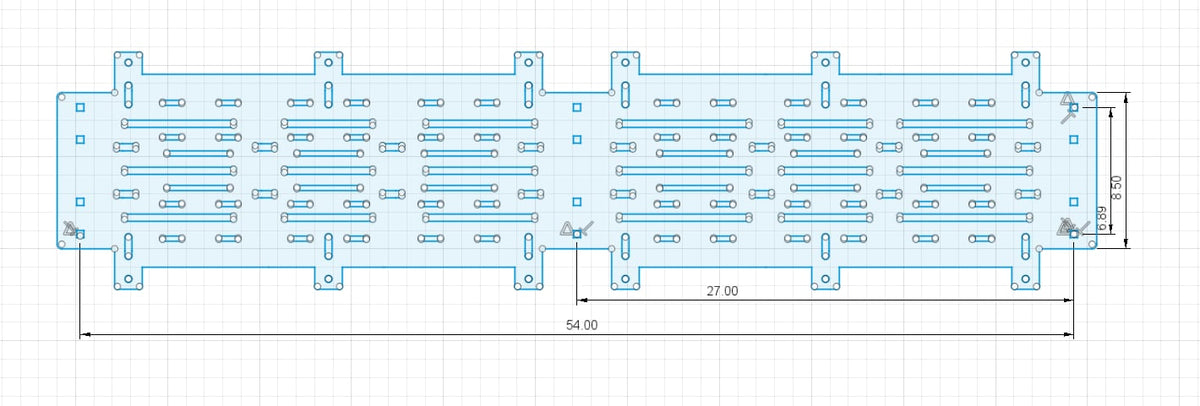

• Main mounting span shown in drawing: 54"

• Overall panel height: 8.5"

• Mounting pattern: 5/16" and 3/8" slots

Both sizes feature the same Bracket Bros Grid System design and universal mounting functionality.

NEED A CUSTOM LENGTH? MESSAGE US!

Accessory Compatibility

The Overland Rack Grid System is designed to accommodate a wide range of accessories, including:

• RotopaX fuel and water containers

• MAXTRAX and other traction boards

• Recovery equipment and accessories

• Shovels and off-road tools

• Fire extinguishers

• Storage and utility accessories

• Custom accessory mounting brackets

• Other overland and off-road equipment

Accessory-specific mounting hardware or adapters may be required.

Universal Rack Fitment

Designed for a variety of aftermarket overland racks, truck bed racks, and compatible accessory mounting systems.

Important: This is a universal mounting panel, not a vehicle-specific product.

Please verify your rack's mounting dimensions, attachment locations, and available clearance before ordering.

The universal design provides multiple mounting options, but compatibility with every aftermarket rack is not guaranteed.

Installation & Mounting Options

The Overland Rack Grid System features multiple mounting methods to accommodate different rack configurations.

Carriage Bolt Mounting

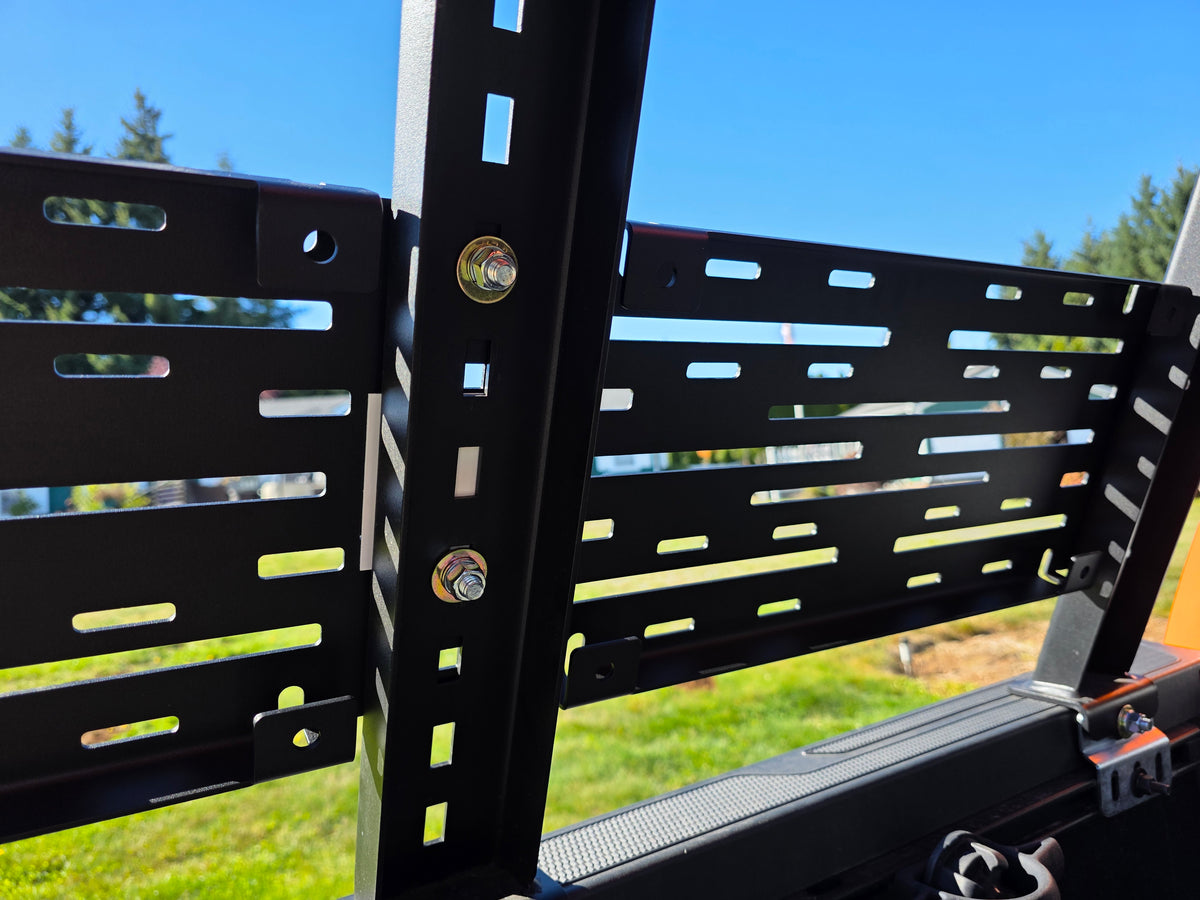

The integrated mounting slots allow the Grid System to be secured using compatible carriage bolts and mounting hardware, providing a clean and adjustable installation.

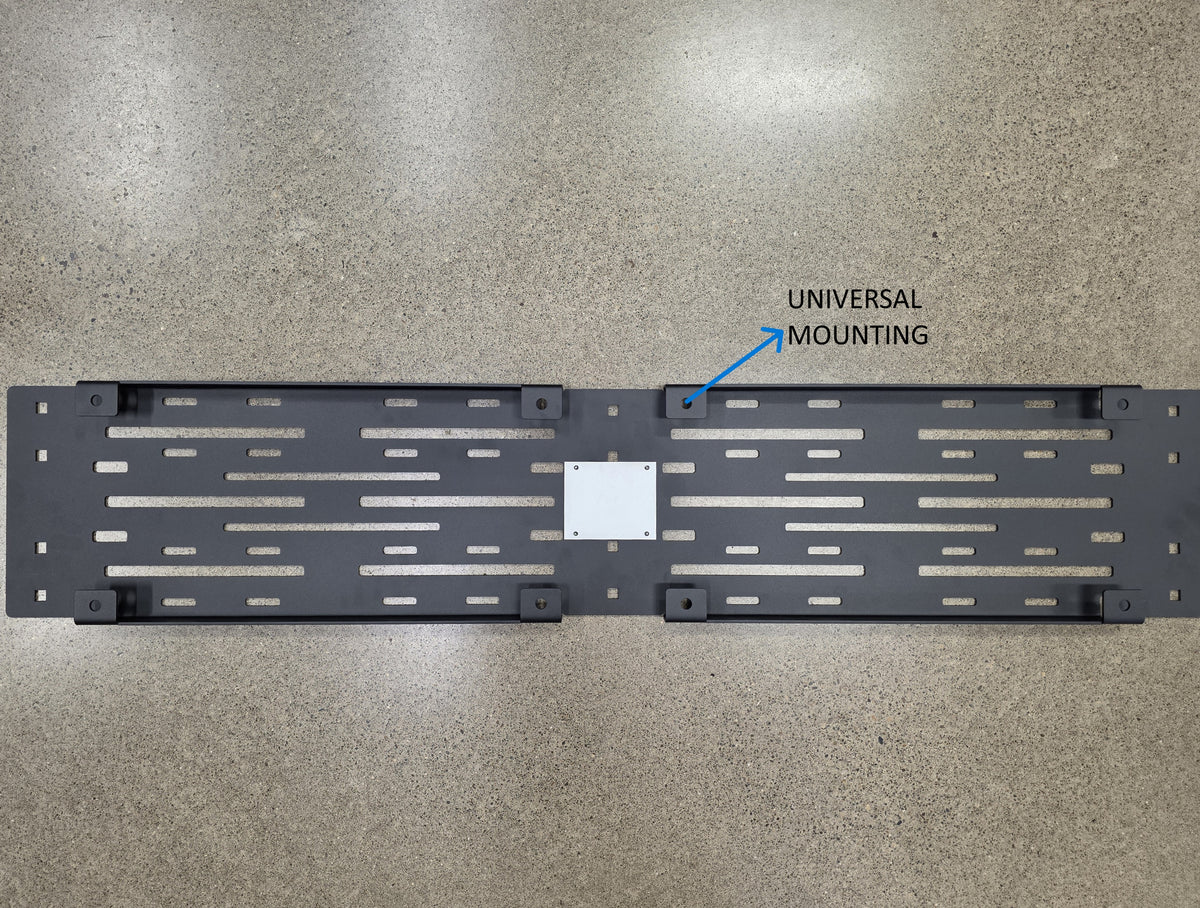

Universal Rear Mounting Points

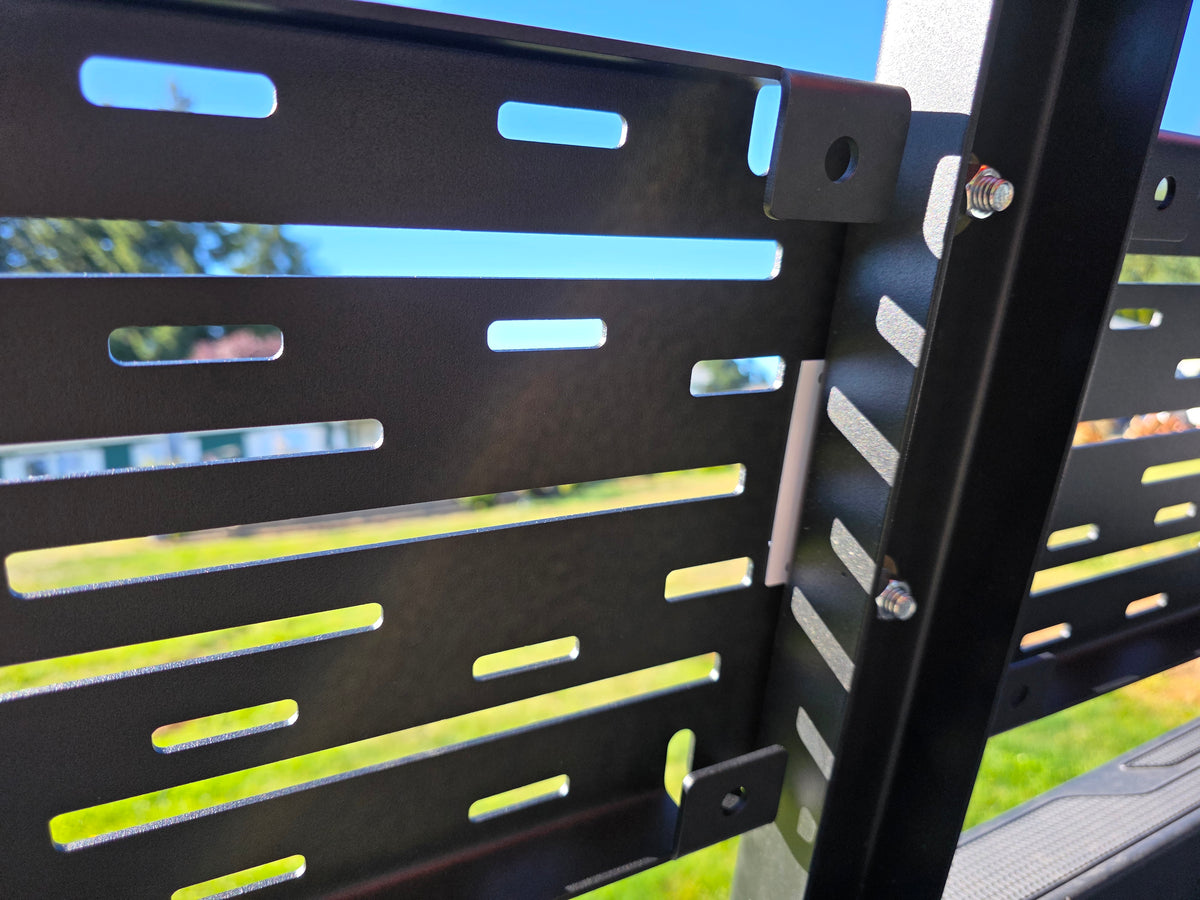

Additional mounting holes incorporated into the rear mounting brackets provide an alternative attachment method for applications where carriage bolt slots are not preferred.

These mounting locations also serve as the foundation for future integration with the Bracket Bros Interior Rack Grid Panel.

Future Interior Rack Grid Panel Integration

The Overland Rack Grid System is designed to grow with your build.

Our universal rear mounting points are engineered to accommodate a future Interior Rack Grid Panel, which will mount directly to the back of the existing Overland Rack Grid System.

This creates an additional mounting surface facing the inside of the truck's bed rack, allowing accessories and equipment to be organized on both sides of the rack assembly.

Rather than requiring a separate mounting system attached to the truck bed, the interior panel will integrate directly with the existing exterior Grid System, creating a unified, dual-sided accessory mounting platform.

Interior Rack Grid Panel is not included and will be offered separately when available.

Kit Includes

• 1x PAIR Bracket Bros Overland Rack Grid Panel (selected size)

Important Note

Please verify your mounting dimensions before ordering.

The Overland Rack Grid System is offered in two sizes, each featuring our universal mounting pattern.

Although designed to accommodate a wide variety of aftermarket rack systems and accessories, some applications may require additional mounting hardware or brackets.

If you're unsure which size will work best with your rack, feel free to contact us before placing your order.
